MENiAC Air (mair) is a command-line application that renders HTML and outputs broadcast video to SDI on a Blackmagic DeckLink card — turning SPX and other web-based graphics into live fill and alpha signals.

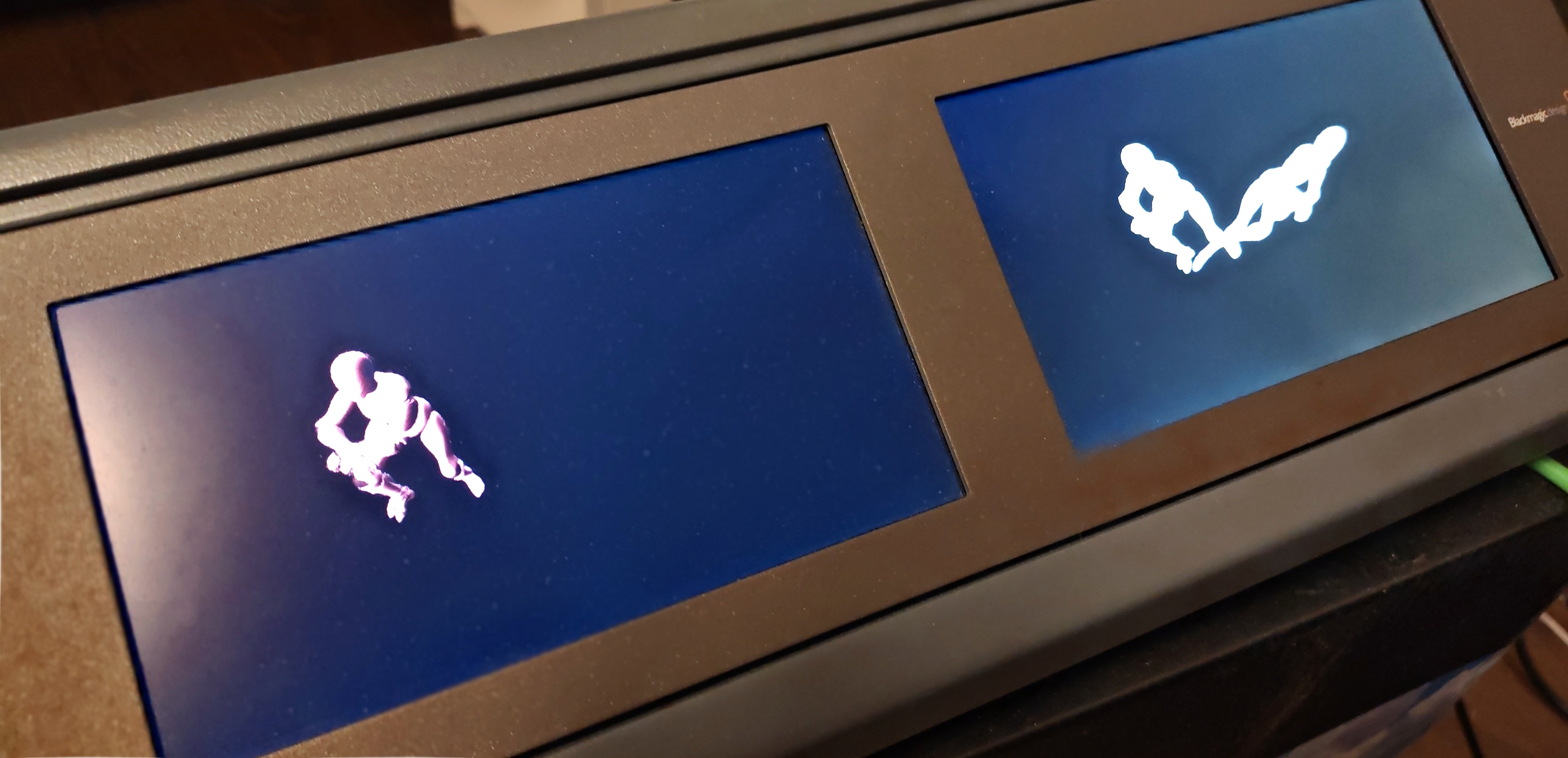

MENiAC Air SDI fill and alpha output on Blackmagic SmartView
Fill and alpha SDI output on Blackmagic SmartView
SPX HTML graphics rendered through MENiAC Air to SDI
HTML graphics from SPX cast to SDI

Features

  • HTML rendering via Chromium Embedded Framework (CEF)
  • SDI output on Blackmagic DeckLink (e.g. DeckLink Duo)
  • Separate fill (RGB) and alpha matte outputs for broadcast keying
  • Dual-layer support — two web pages on four SDI wires
  • Compatible with SPX-GC and other HTTP graphics sources
  • Fallback image when the graphics server is unavailable
  • User guide included with the package

Supported hardware

  • Blackmagic DeckLink playback devices (developed with DeckLink Duo)
  • Multi-output DeckLink cards for separate fill and alpha SDI
  • Blackmagic Desktop Video drivers installed and device active
